88.8 water level countdown timer led screen
|Payment Type:||T/T,D/P,Paypal,Money Gram,Western Union|
|Terms of Trade:||EXW|
|Delivery Time:||7 Days|
|Place of Origin:||guangdong|
Model No.: WDM-SBDJS-2
Shenzhen Wide Way Optoelectronics Co., Ltd. is a professional manufacturer of R&D and production of 88.8 water level countdown timer led screen. Our countdown traffic lights include: single 8 countdown wicks, double 8 countdown wicks, traffic lights with countdown, countdown display, countdown display and so on.
Shenzhen Wide Way Optoelectronics Co., Ltd. has been established for more than 10 years. It is an innovative and powerful manufacturer of countdown lights. We have an excellent team integrating design, research and development, production and sales. We launch new products from time to time every year, and customers are also welcome to customize pictures...
88.8 water level countdown timer led screen parameters:
1. Product size: 88.8 Display: 4500MM*1800MM
Pattern screen: 1200*1200MM
"M" screen: 1200*1200MM
2. Lamp bead color: yellow, green
3. Yellow wavelength: 590-595NM
4. Green wavelength: 500-505NM
5. Battery: 300AH
6. Solar panel: 300W
7. Visual distance: ≥1500M
8. Service life: 100000H
9. Shell material: aluminum (light and easy to install during installation)
10. Working temperature: -40℃-85℃
11. Protection level: IP65
12. Working voltage: 1 2V
13. Rated power: 40W
14. Working mode: PLC output signal
Features of the 88.8 water level countdown timer led screen:
1. The LED lamp beads for the 88.8 water level countdown timer led screen use Taiwan Epistar chips with our own independent mold lens, and each lens is a convex lens. The convex lens has a light transmission function, which greatly increases the viewing distance and not only has a longer service life. , The stability is very good, with high refresh rate, high concentration, high brightness lamp characteristics.
2. The 88.8 water level countdown timer led screen is powered by a 300W super large solar panel, without the need for mains power supply or replacement of the power supply, and can work around the clock.
3. Our company is equipped with a 300AH super battery for the 88.8 water level countdown timer led screen, which has a longer service life.

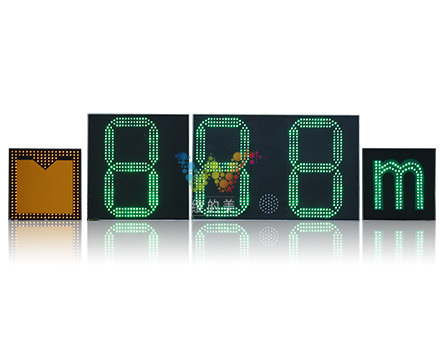

4. The 88.8 water level countdown timer led screen is divided into digital screen, M word screen and pattern screen. The digital screen includes three numbers "3 8" and a decimal point, arranged in the word "88.8"; M word screen displays the distance of the water level in meters; The screen shows the water level height

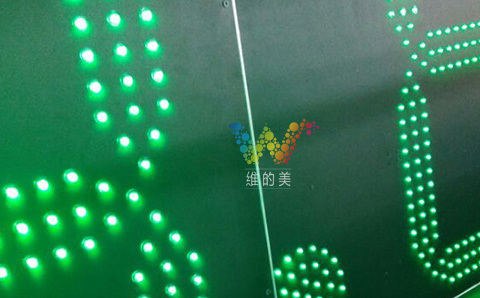

5. The geometric shape of each number on the digital screen on the 88.8 water level countdown timer led screen is in the shape of "day", and each "day" shape number is divided into the same seven fields, and a number of green lights are evenly distributed around each field. The LED light-emitting module in the field is outlined with a green diamond pattern. The distance between two adjacent light-emitting modules on the field is 10cm. The LED light-emitting modules are distributed along the edge of the diamond pattern, saving the middle LED light-emitting module , This layout can not only give full play to the display efficiency but also minimize the display energy consumption.
6. The solar panel that counts down to the 88.8 water level countdown timer led screen is placed directly above the bridge water level display. The upper solar panel can play a role in shading and shielding the bridge water level display, which is beneficial to prolong the service life of the bridge water level display.
7. The number on the 88.8 water level countdown timer led screen changes with the height of the water surface from the bridge.
Device countdown 1
8. The working mode of the 88.8 water level countdown timer led screen is PLC output signal and 485 communication, which can be remotely controlled or monitored.

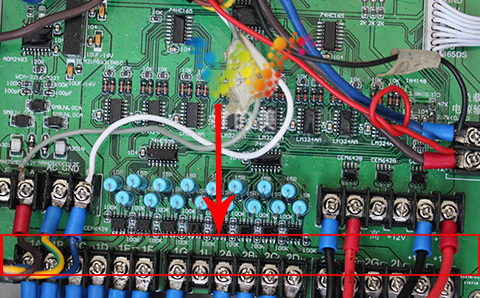

88.8 water level countdown timer led screen wiring instructions
(1) "8.8" screen wiring:
① The first ‘8’ is connected to the main control card 1A, 1B, 1C, 1D, 1E, 1F, 1G
②The decimal point is connected to the 2I of the main control card
③The second ‘8’ is connected to the main control card 2A, 2B, 2C, 2D, 2E, 2F, 2G (as shown in the picture)
(2) "8" screen wiring:
‘8’ connects to the secondary control card (under the main control card) 1A, 1B, 1C, 1D, 1E, 1F, 1G (as shown in the figure above)
Remark: On the control board, each connection port is marked with text description: such as 1A, 1B...
(3) ① The "wave-shaped" pattern screen is connected to the two ports of the number ‘1’
②The "M" screen is connected to the two ports of the number ‘2’ (as shown in the picture)
